Lull 944E-42 Forklift-Call 646-210-2405
|
| Selected Ad |
| Category: |
Forklift |
| Title: |
Lull 944E-42 Forklift-Call 646-210-2405 |
| Ad
Number: |
1407 |
| Date Posted: |
8/29/2007 |
| Contact: |
Jim Miller
massapequa, NY 11758
|
| Website: |
http://www.angelaerial.com
|
|
|
|
|
|
Description

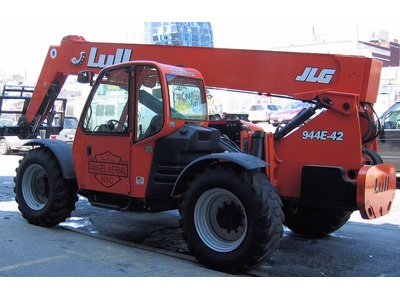

Price $87,500. Lull Model 944E-42
More power, more visibility and all the advantages of the horizontal load placement system combine to make the Lull model 944E-42 telehandler a powerful and productive tool on any job site. Plus with a 9,000-pound capacity and full line of attachments to choose from you'll have versatility to spare.
9,000 lb (4,082 kg) capacity
Up to 42 ft. (12.8 m) lift height
Automatic fork leveling system
Improved visibility
Side mounted engine for easy access
Stabil-Trak stability system increases operator confidence
Cummins power with 4-speed powershift transmission
Variety of attachments for added versatility
Model
944E-42
TELEHANDLER
Performance
Rated Capacity
9,000 lb (4,082 kg)
Maximum Lift Height
42 ft (12.8 m)
Frame Leveling
12 degrees
Lift Speed (boom retracted, no load)
Up: 16 sec
Down: 13 sec
Boom Speed (no load)
Extend: 13 sec
Retract: 13 sec
Travel Speed Forward
20 mph (32 kmph) max.
Drawbar Pull (loaded)
24,350 lb (11,045 kg) in first gear
Operating Weight
With 48 in. Carriage and Forks
27,265 lb (12,367 kg)
Forward Reach
35 ft 6 in. (10.8 m)
Horizontal Load Placement Distance
80 in. (2.0 m)
Standard Specifications
Engine
Make and Model Cummins QSB4.5T Turbo
Fuel Diesel
Cycles 4
No. of Cylinders 4
Displacement 276 cu in (4.5 L)
Torque Rating 305 lb ft (414 Nm) @ 1,500 rpm
Rated Speed 2,500 rpm
Max. Gross BHP 110 hp (82 kW)
Fuel Tank 46 gal (174 L)
Engine Block Heater
Engine Grid Heat System
Engine Filters
Two-stage centrifugal air cleaner.
Serviceable fuel filter/water separator.
Full-flow replaceable-element engine oil filter.
Electrical System
Voltage 12V
Alternator 65 amp
Battery Two batteries, each with 850 cold cranking amps at 0�F
Transmission
Modulated powershift with integralfull gear-drive dropbox.
4-speed forward and 3-speed reverse.
Axles
Full-time planetary 4-wheel drive.
Limited slip front differential.
Stabil-Trak rear axle stability system.
Brakes
Inboard mounted internal wet disc brakes.
Parking Brakes
Spring applied, hydraulically released parking brake with transmission declutch feature.
Tires
Standard Air-filled 15:50 x 25 � 12 ply
Fenders
Cab
Certified ROPS/FOPS structure.
Steering wheel mounted horn and back-up alarm.
Rear view mirrors.
Steering
4-wheel circle, 4-wheel crab, 2-wheel front.
Instruments
Hydraulic oil temperature, fuel level, tachometer, and hourmeter gauges.
Warning indicators for transmission oil temperature, hydraulic oil temperature, engine oil pressure, alternator charging, air filter rest |
|
|
|
|
|
|
