New SBS Egglaying Bock Machine
|
| Selected Ad |
| Category: |
Concrete |
| Title: |
New SBS Egglaying Bock Machine |
| Ad
Number: |
927 |
| Date Posted: |
1/10/2007 |
| Contact: |
Banks Service Equipment Co.
Dallas, TX 75220
|
|
|
|
|
|
Description

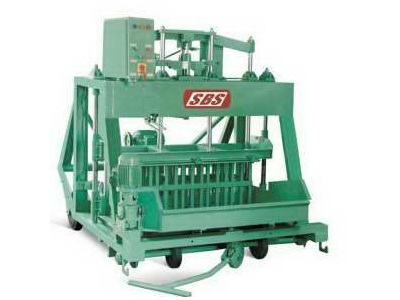

This is an egg laying Hydraulic Concrete Block Making Machine on wheels. It will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets.
The mold and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mold. Several standard molds are readily available. Custom molds can be produced.
This machine applies pressure of 140 Kgs/CM2. This machine can be used to produce hollow block, solid blocks, bricks galore, and interlocking pavers.
Production Capacity:
400 x 200 x 200mm (8") 5 per stroke or over 3000 per day
400 x 200 x 150mm (6") 6 per stroke or over 3600 per day
400 x 200 x 100mm (4") 10 per stroke or over 6000 per day
No of strokes: 60 per hour
Vibrator Motor: 1.5 HP, 440V, 3PH
Hydraulic pump motor: 5 HP, 440V, 3PH
Travel Motor: 0.5 HP, 440V, 3PH
Machine Weight: 1.5 Tons depending on molds.
This is a big machine that weights over 3000 lbs.
$22,500.00 FOB Port of Miami |
|
|
|
|
|
|
|
|
|
