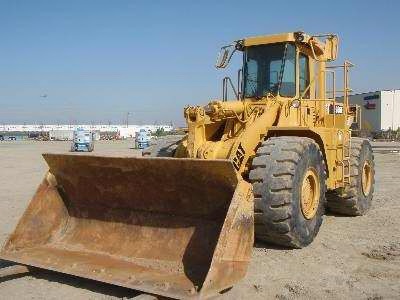

1990 CATERPILLAR 966E WHEEL LOADER

Selected Ad

Category:

Loaders

Title:

1990 CATERPILLAR 966E WHEEL LOADER

Ad Number:

15033

Date Posted:

3/8/2015

Contact:

bruce duncan
611 Bluff Street,
Wichita Falls, TX 76301

Telephone:

9406039678

Description
CATERPILLAR 966E WHEEL LOADER
Serial number: 99Y06915
Comes with: Q/C bkt, Q/C forks, A/C cab, 26.5x25

$35,000

Specification
Engine
MAKE Caterpillar
MODEL 3306
GROSS POWER 215.9 hp 161 kw
DISPLACEMENT 640.7 cu in 10.5 L
Operational
OPERATING WEIGHT 44551 lb 20208 kg
FUEL CAPACITY 80.3 gal 304 L
HYDRAUILC SYSTEM FLUID CAPACITY 54.2 gal
205 L
STATIC TIPPING WEIGHT 30547.3 lb 13856 kg
TURNING RADIUS 23.3 ft in 7104 mm
TIRE SIZE 26.5-25 14PR
Transmission
NUMBER OF FORWARD GEARS 4
NUMBER OF REVERSE GEARS 4
MAX SPEED - FORWARD 23.7 mph 38.2
km/h
MAX SPEED - REVERSE 27.1 mph 43.6
km/h
Hydraulic System
RAISE TIME 7.1 sec
DUMP TIME 2 sec
LOWER TIME 2.4 sec
Bucket
BREAKOUT FORCE 41918 lb kN
DUMP CLEARANCE AT MAX RAISE 9.8 ft in
2973 mm
BUCKET WIDTH 10 ft in 3059 mm
BUCKET CAPACITY - HEAPED 4.7 yd3 3.6 m3
BUCKET CAPACITY - STRUCK 4.2 yd3 3.2 m3
Dimensions
LENGTH WITH BUCKET ON GROUND 26.9 ft in
8203 mm
WIDTH OVER TIRES 9.8 ft in 2990 mm
HEIGHT TO TOP OF CAB 11.7 ft in 3580 mm
GROUND CLEARANCE 1.6 ft in 501 mm
WHEELBASE 11 ft in 3350 mm
HINGE PIN - MAX HEIGHT 1.5 ft in 459 mm
REACH AT MAX LIFT AND DUMP 4.2 ft in
1285 mm
