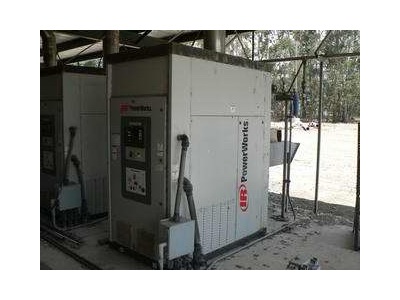

Ingersoll Rand 70LM Microturbine Gensets

Description
Salvex Listing ID: 182962711
Item Details:

These units are coming available as the owning company was relying on running these units using the methane gas coming from the landfill that is nearby. The landfill is no longer producing a sufficient supply of gas to power these units, and as a result, the owner is unable to use these microturbine generators. Considering their inability to use the generator sets, they are looking to gain back part of their original investment and free up the space.

(3) Ingersoll Rand PowerWorks 70LM Microturbine/Peak Shaving Natural Gas Generator Sets

Unit 1
Manufacturer: Ingersoll Rand PowerWorks
Model # 70 LM
Serial # PW00174D0102
Supply Voltage: 480
Nominal Power Output: 70kW
Cycle (Hz): 60
Max Power Output: 98kW
Max Amperage: 149
Fuel Type: Natural Gas
Heat Output (BTU/H): 85.3
Current Hours: 423.7
Enclosure Type: Weather

Unit 2
Manufacturer: Ingersoll Rand PowerWorks
Model # 70 LM
Serial # PW00219D02072
Supply Voltage: 480
Nominal Power Output: 70kW
Cycle (Hz): 60
Max Power Output: 98kW
Max Amperage: 145
Fuel Type: Natural Gas
Heat Output (BTU/H): 119.4
Current Hours: 511
Enclosure Type: Weather

Unit 3
Manufacturer: Ingersoll Rand PowerWorks
Model # 70 LM
Serial # PW00220D02074
Supply Voltage: 480
Nominal Power Output: 70kW
Cycle (Hz): 60
Max Power Output: 98kW
Max Amperage: 145
Fuel Type: Natural Gas
Heat Output (BTU/H): 119.4
Current Hours: 988
Enclosure Type: Weather

Generator Data:
Manufacturer: Reliance
Type: Induction
KW Rating: 100
Voltage: 460
Cycle (Hz): 60
Phase: 3
RPM (Rotation) 3640
Power Factor: 0.82

Dimensions
Switchgear= (L)72�x(W)36�x(H)92.5�
Fuel Sample Panel=(L)24�x(W)24�x(H)72�
Control Station=(L)26�x(W)28.5�x(H)70�
Microturbine Relay Cabinet=(L)31�x(W)19�x(H)60�
Battery Cabinet=(L)36�x(W)24�x(H)78�

Dimensions for Each: 69.5"L, X 42"W, X 88"H

Approximate Weight for Each: 6000 lbs

Quantity: 3 Gensets
Location: Napa, California, United States
Condition:
These units are coming available as the owning company was relying on running these units using the methane gas coming from the land
