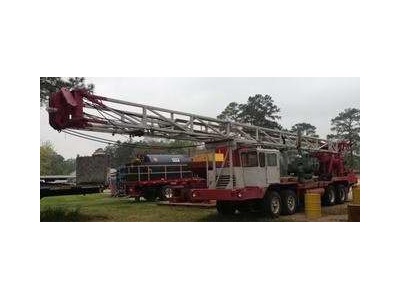

Shop-Built Rig |
| Ad
Number: |
17616 |
| Date Posted: |
4/29/2016 |
| Contact: |
tahamidur rahman
Houston, TX 77002
|
| Website: |
http://www.salvex.com/
|
|
|
|
|
|
Description
Salvex Listing ID: 182966374
Item Details:
This unit of Shop-Built Rig ญญญญญis available for
sale as used surplus, and is being sold as an
asset liquidation for the owner. Details are
listed below:
This is a shop-built rig with factory parts,
medium depth and casing load (test holes to 1500
ft., casing loads of 60,000 lbs., maximum casing
diameter 16") Drill pipe size 3-1/2"
1. Derrick : 52 ft . crown to rotary -
Hydraulic raised and lowered- Four leg
construction with channel guide for Kelly/swivel
retract at top of derrick- crown is sheaved for
4-part line on Kelly and casing drum- 3" stand
pipe and Kelly hose.
2. Traveling Equipment: Kelly Block 3 - 12"
sheaves . Casing block- Johnson . Two 12" sheave
crane block with cheek weights and duplex hook -
Elevator links 33" x 2-1/4"
3. Drawworks : Two drum stacked drum design
with 18 air clutch on drum shaft- Foster
spinning cathead on extra jackshaft on operator
side- 8" x 24" brakes, 16" long
drum,Manufactured by DSM
4. Rotary Table: Midway 12" oil bath rotary
with tapered master bushing for drill pipe
slips- Hydraulic retracts under drawwork s for
setting large casing- Shaft drive with 4 speed
transmission from Midway 15 power transfer case
5. Mud Pump: Gardner Denver, new,FYFXD 7-
1/2" x 10" pump with 7" liners installed- Pump
has rod oiler system installed. A 4" x 3" x 13"
centrifugal pump is mounted under deck and belt
driven from gear end jackshaft with a 4 to
1ratio. The pump has inlet manifold piping with
strainer basket clean-out mounted under deck-
Discharge piping with surge chambers and
vibrator hoses mounted on deck.
6. Prime Mover: 4 axle crane carrier with
450 Cummins power 10-speed Fuller transmission .
7. PTO: Spicer 748 oil bath PTO- Shaft drive
to power transfer case- Belt drive with clutch
on jackshaft to mud pump.
8. Power Transfer Case: Midway 1500 case,
power outlets shaft drive to drawworks ,shaft
drive to rotary thru-clutch and transmission -
Hydraulic oil pump mounted on case - Chain type,
enclosed,oil bath lubricated
9. Swivel: Western Rubber 60PG with 3" water
course and wash barrel
10. Kelly: 4-1/4" sq. x 40ft .
11. Leveling Jacks: 2 hydraulic at rear, 2
hydraulic behind front axles 12. Tailout Winch:
1hydraulic,by Foster
Quantity: 1 Unit
Location: Conroe , Texas, United States
Condition:
Used surplus, in very good condition and can be
driven away. Please see photos. All the items
are "AS IS, WHE |
|
|
|
|
|
|
