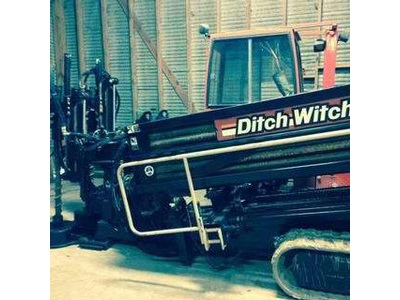

Ditch Witch JT4020 Mach 1 Drilling Rig
|
| Selected Ad |
| Category: |
Drill |
| Title: |
Ditch Witch JT4020 Mach 1 Drilling Rig |
| Ad
Number: |
17617 |
| Date Posted: |
4/29/2016 |
| Contact: |
tahamidur rahman
Houston, TX 77002
|
| Website: |
http://www.salvex.com/
|
|
|
|
|
|
Description
Salvex Listing ID: 182966365
Item Details:
This unit of Ditch Witch Drilling Rig is no
longer needed for company's own operation and is
being sold as an asset liquidation for it's
owner. Details are listed below:
This unit is in great condition with 2700 hours
and ready to work
Asking price includes the following:
Ditch Witch mixing/mud tank
800' of rods and rod baskets
All JT4020 tooling
The Specifications are listed below:
JT4020 Mach 1 Model Specs:
· Displacement - 409 cubic inches
· Emissions Compliance - EPA Tier 3
· Engine Cooling System - Liquid
· Entry Angle - 10-16°
· Fuel Tank Capacity - 55 gal
· Fuel Type - Diesel
· Ground Drive Speed - 2.5 mph
· Height - 96"
· Hydraulic Tank Capacity - 36 gal
· Joint Diameter - 3.5"
· Length of drill pipe, nominal* - 177"
· Overall Machine Length - 337"
· Engine Make and Model - Cummins QSB6.7
· Manufacturer's Gross HP Rating - 190
hp
· Max Carriage Speed - 120 ft/min
· Max Flow - 120 gal/min
· Max Pressure - 1300 psi
· Max Spindle Speed - 240 rpm
· Max Spindle Torque - 5000 ft /lbs
· Min Bend Radius - 190'
· Min Bore Diameter - 5"
· Number of Cylinders - 6
· Pipe Diameter - 2.81"
· Pullback - 40,000 lbs
· Rated Engine RPM - 2400 rpm
· Thrust - 36,000 lbs
· Weight of Drill Pipe - 158 lbs
· Overall Machine Weight - 27,700 lbs
· Weight of Pipe and Large Box - 6000
lbs (32 pipe)
· Weight of Pipe and Small Box - 3100
lbs (16 pipe)
· Width - 87"
Quantity: 1 Drill Rig
Asking Price: $220,000.00
Location: Conroe, Texas, United States
Condition:
This unit is in great condition with 2700 hours
and ready to work. This is a pull behind unit.
Please see photos. Sold "AS IS, WHERE IS". Buyer
is responsible for shipping and handling.
Storage costs will be covered up to 15 days
after buyer pays. After that, storage costs will
be for the buyer's account.
Seller Terms:
This product is purchased, as is where is basis,
buyer is responsible for all moving and freight
costs. The seller does not offer any warranties
or any manufacturer warranties. Upon receipt of
cleared funds, seller will give the buyer a
release order for item pick up. All product sold
as is, where is.
Go to
http://www.salvex.com/listings/listing_detail.cf
m?aucID=182966365 to view complete |
|
|
|
|
|
|
