2006 CATERPILL 305CR EXCAVA

Selected Ad

Category:

Excavators

Title:

2006 CATERPILL 305CR EXCAVA

Ad Number:

18174

Date Posted:

9/26/2016

Contact:

Anthony Vaccarielli
Albany, NY 12205

Telephone:

(518) 221-3952

Website:

http://schuyler.builders/

Description
Cut/Paste link- https://youtu.be/4LdSX1qyo6M

Nice unit ready to work

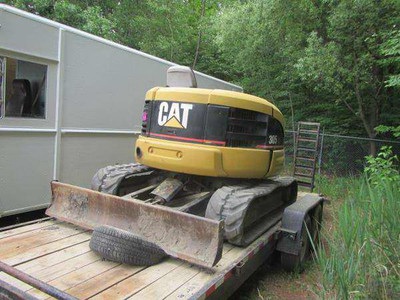

Used "2006" CATERPILLAR Mini Excavator:
Erops, SAE Control, Aux Hyd's, Blade, Rubber
Tracks, Coupler, 24" Bucket
Engine
Make Mitsubishi
Model S4Q2
Gross Power 43.8 hp 32.7 kw
Net Power 42.2 hp 31.5 kw
Power Measured @ 2400 rpm
Displacement 153 cu in 2505 L
Number of Cylinders 4
Operational
Operating Weight 10844 lb 4920 kg
Fuel Capacity 19 gal 72 L
Cooling System Fluid Capacity 2.9 gal 11 L
Hydrauilc System Fluid Capacity 20.6 gal 78 L
Engine Oil Capacity 1.9 gal 7 L
Operating Voltage 12 V
Alternator Supplied Amperage 50 amps
Hydraulic System Relief Valve Pressure 3553 psi
24500 kPa
Hydraulic Pump Flow Capacity 31.4 gal/min 119
L/min
Swing Mechanism
Swing Speed 9 rpm
Undercarriage
Shoe Size 16 in 400 mm
Max Travel Speed 2.8 mph 4.6 km/h
Track Gauge 5.2 ft in 1580 mm
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1 Standard Stick
Shipping Height of Unit 8.3 ft in 2550 mm
Shipping Length of Unit 17 ft in 5170 mm
Max Digging Depth 10.8 ft in 3300 mm
Max Reach Along Ground 17.9 ft in 5460 mm
Max Cutting Height 17.3 ft in 5280 mm
Max Loading Height 12.1 ft in 3690 mm
Max Vertical Wall Digging Depth 8 ft in 2440 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2 Long Stick
Shipping Height of Unit 8.3 ft in 2550 mm
Shipping Length of Unit 17.3 ft in 5290 mm
Max Digging Depth 12.1 ft in 3690 mm
Max Reach Along Ground 19.2 ft in 5830 mm
Max Cutting Height 18 ft in 5480 mm
Max Loading Height 12.8 ft in 3900 mm
Max Vertical Wall Digging Depth 9.1 ft in 3690
mm
Dimensions
Width to Outside of Tracks 6.5 ft in 1980 mm
Height to Top of Cab 8.3 ft in 2550 mm
Ground Clearance 1.1 ft in 340 mm
Counterweight Clearance 2 ft in 615 mm
Tail Swing Radius 3.5 ft in 1070 mm
Length of Track on Ground 8.5 ft in 2580 m
