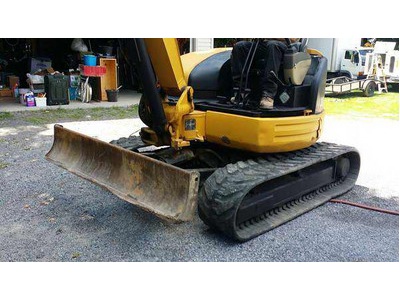

2006 CATERPILLAR 305 CR EXCAVATOR

Selected Ad

Category:

Excavators

Title:

2006 CATERPILLAR 305 CR EXCAVATOR

Ad Number:

18921

Date Posted:

4/26/2017

Contact:

Anthony Vaccarielli
Albany, NY 12205

Website:

http://schuyler.builders/

Description
New/Unused "2015"CATERPILLAR Mini Excavator:
Erops,SAE Controle, Aux Hyd's, Blade, Rubber
Tracks, Coupler, 24" Bucket
Engine
Make Mitsubishi
Model S4Q2
Gross Power 43.8 hp 32.7 kw
Net Power 42.2 hp 31.5 kw
Power Measured @ 2400 rpm
Displacement 153 cu in 2505 L
Number of Cylinders 4
Operational
Operating Weight 10844 lb 4920 kg
Fuel Capacity 19 gal 72 L
Cooling System Fluid Capacity 2.9 gal 11 L
Hydraulic System Fluid Capacity 20.6 gal 78 L
Engine Oil Capacity 1.9 gal 7 L
Operating Voltage 12 V
Alternator Supplied Amperage 50 amps
Hydraulic System Relief Valve Pressure 3553 psi
24500 kpa
Hydraulic Pump Flow Capacity 31.4 gal min 119 L
Swing Mechanism
Swing Speed 9 rpm
Undercarriage
Shoe Size 16 in 400 mm
Max Travel Speed 2.8 mph 4.6 km/h
Track Gauge 5.2 ft in 1580 mm
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1 Standard Stick
Shipping Height of Unit 8.3 ft in 2550 mm
Shipping Length of Unit 17.3 ft in 5290 mm
Max Digging Depth 12.1 ft in 3690 mm
Max Reach Along Ground 19.2 ft in 5830 mm
Max Cutting Height 18 ft in 5480 mm
Max Loading Height 12.8 ft in 3900 mm
Max Vertical wall Digging Depth 9.1 ft in 3690
mm. Dimensions:
Width to Outside of Tracks 6.5 ft in 1980 mm
Height to Top of Cab 8.3 ft in 2550 mm
Ground Clearance 1.1 ft in 340 mm
counterweight clearance 2 ft in 615 mm
Tail Swing Radius 3.5 ft in 1070 mm
Length of Track on Ground 8.5 ft in 2580 m
