| Selected Ad |
| Category: |
Forklift |
| Title: |

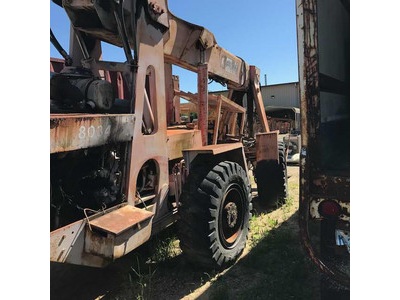

Koehring/Skytrak 8034 |
| Ad
Number: |
18999 |
| Date Posted: |
5/29/2017 |
| Contact: |
Guy Whilden
Durham, NC 27712
|
|
|
|
|
|
Description
Engine: Cummins 378 Diesel, 155 HP
Weight: 27,300 lbs empty. 29,550 lbs with
hydrofill - 4 tires.
Tires: 15.5 X 25 Sure Grip Loader Tires, 12 ply.
Overall Height: 9' 11 3/4"
Overall Length: Approximately 21' 6".
Width: 96"
Turning Circle: Approximately 34' outside
Maximum Capacity: 10,000 lbs lift & carry @24"
load centers
Operating Speeds: 0 to 20 MPH-high; 0-8 MPH-low.
Feed Capabilities:
Below grade - 2' approximately.
Maximum forward reach - 17.5'.
Maximum Height - 34', reach 5'.
Fork Tilt: 10 degrees back - 90 degrees + down
(on level).
Machine Tilt: 12 degrees either side - manual
operation - with automatic lockout feature.
Direction Control: Simple foot control for
either direction with built-in acceleration.
Separate foot acceleration for use with lifting
and placing loads. Also to achieve maximum
torque at high RPM.
Brakes: Two separate systems.
Hydraulic Reservoir: 50 gallons.
Fuel Capacity: 40 gallons.
Hydraulic Pumps: Three pumps
Two - Piston-type - variable displacement - one
each for front and rear hydrostatic axle drive.
One - Triple pump for lift - level - steer.
Hydraulic Safety: Load checks on level, lift,
fork lift, and boom extension hydraulic
cylinders. |
|
|
|
|
|
|
