½ Ton Budget Elec Hoist & Trolley

Selected Ad

Category:

Cranes

Title:

½ Ton Budget Elec Hoist & Trolley

Ad Number:

1981

Date Posted:

10/11/2008

Contact:

Rick Wall
Birmingham, AL 35214

Website:

http://www.alacrane.com

Description
Description

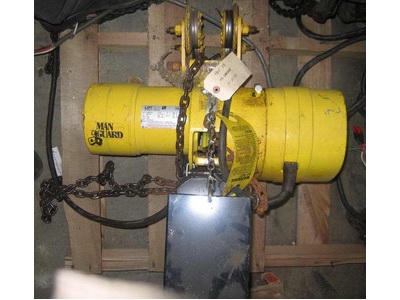

QUANTITY OF TWO,WILL SELL SEPARATELY: ½ Ton Budget Electric Chain Fall Hoist & Manual Trolley w/ Chain Container

$400.00 EACH

Power requirements 460/ 220 Volt A.C. 3 Phase

Heavy Duty Motor Brake - AC spring set disc brake for positive braking action and long life with minimal maintenance.
Easy 1-step adjustment procedure.

Gearing - Totally enclosed, oil bath lubricated for long life.

High Torque, Heavy Duty Hoist Motor - Motor are H4 30-minute rated with class "F" insulation and include a thermal
actuated switch-(TAS) embedded in the motor winding for protection.

Load Sprocket & Chain Guide - Provided with a full floating chain guide that assures proper engagement of chain on load
sprocket.

Lower Block – Has a 360° rotating hook riding on thrust bearings. Hook has a spring-loaded latch.

Push-Button Controls -Has Standard push-button control station easy one-handed sure grip control and provided with a
weatherproof NEMA-4X enclosure. The push-button cable has built-in strain relief to help prevent cable damage.

Suspension - Hook suspension on a manual push pull trolley fits 3 to 6 Inch Bottom flange.

Hoist has a Paddle Limit Switch - upper and lower control limit switch hoists.

Standard Safety Yellow.

Hoist has 10 ft of Lift Hoist Speed 16 Feet per Minute Single Speed

Contact Rick at [email protected]
