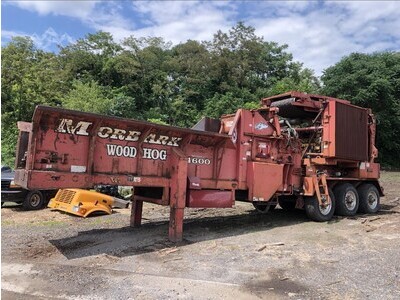

2006 Morbark 4600 Horizontal Grinder
|
| Selected Ad |
| Category: |
Industrial Equipment |
| Title: |
2006 Morbark 4600 Horizontal Grinder |
| Ad
Number: |
21712 |
| Date Posted: |
9/24/2022 |
| Contact: |
Tim Menard
Omaha, NE 68152
|
|
|
|
|
|
Description
2006 Morbark 4600 Horizontal Grinder For Sale In
Donnellson, Iowa 52625
Get ready to maximize your efforts with this 2006
Morbark 4600 Horizontal Grinder. This durable
Horizontal Grinder has been very well maintained
which has enabled its work ready condition. It
comes with options and features that are perfect
for any hard-working individual.
Highlights include:
31-3/4" x 60-3/8" Hammermill system constructed of
heavy duty 22-3/8" diameter roto, (16)1-1/8" thick
2-piece laser cut rotor plates to ensure precision
and enforce steel strength. The plates are keyed on
a 5-7/8" diameter shaft with one 5-3/16" bearing
and one 3-15/16" bearing and (8) 2" hammer
retaining rods.
Variable speed infeed system consists of one (1)
33" diameter top compression feed roll with an 18"
long 57" wide live floor equipped with four (4)
strands of WDH-110 120 chain in a staggered
configuration
Hammermill drive includes all belts, sheaves,
bushings and shields
Discharge system consists of two (2) aggregate
grade belt conveyors hydraulically driven, a 48"
wide x 14'6" long horizontal conveyor
Engine gauge panel and emergency shut down system
located in an anti-theft console
Electronic RPM sensor and automatic feed system
Heavy duty tube type frame with hydraulic
stabilizers
Tri-axle trailer with 22,400# suspension per axle,
fifth wheel towing arrangement, air brakes and
lights to ICC specifications
Six (6) 385/65R/22.5, 20-ply radial tires on
aluminum Rims
265-gallon fuel tank
177-gallon hydraulic oil tank
Dust suppression system
Iqan system located in the instrument panel
Sixteen function radio remote control with a
sixteen function 50' tethered remote back-up system
36" wide x 24-1/2' long stacking conveyor with
hydraulic fold for transport
Magnetic end pulley, for discharge conveyor,
complete with collecting slide tray for ferrous
metal removal
Caterpillar Model C16 electronic diesel engine,
630-HP @ 2100 RPM complete with hydraulic wet
clutch, 4-element break-away torque limiter,
complete hydraulic components, brackets, wiring,
air cleaners, filters, radiator screening safety
guards, engine rails and all necessary gauges
Morbark reversing fan
This 2006 Morbark 4600 Horizontal Grinder is ready
to get to work for you. It is field ready and eager
to help you start generating revenue right away. If
you are someone who appreciates quality Horizontal
Grinder, then you owe it to yourself to check out
this 2006 Morbark 4600 Horizontal Grinder. |
|
|
|
|
|
|
